Full Automatic Potato Chips Production Line

Production introduction

Baixin has 15 years of experience in customized solutions for potato processing lines. Since its establishment, Baixin has been committed to providing the best potato processing solutions to users around the world. We provide one-stop turn-key project and make different solutions for different demands.

1.We are a professional manufacture to produce french fries making machines, potato chips making machines.

2.Process capacity including input capacity and output capacity and Process flow can be customized according to your need.

3.About plant scale, we can do full automatic line (finished capacity 100kg/h to 2000kg/h), it can improve production efficiency and save manpower, it is very suitable for the factory and business with a certain scale and starting business.

4.Small scale semi-automatic production line(finished capacity 30kg/h to 300kg/h) and its scale is not so big like full automatic line and ask less manpower, its cost is lower than full automatic line, its production method is very flexible, and suitable for a small-scale business or a company that has just begun to enter the industry.

5.All equipment in the production line is made of 304 stainless steel.

6.Heating method: Electric heating, Gas heating or Electricity heating and gas heating both in one.

7.The size of French fries and the thickness of potato chips are adjusted.

8.We can design floor plan of complete line you need depending on your area' s size.

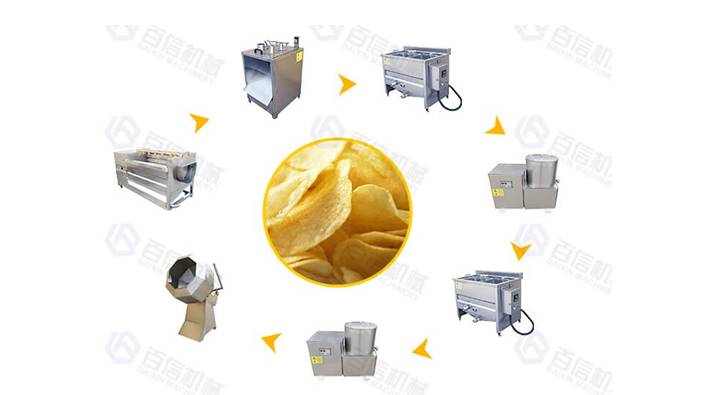

Potato Chips Processing Process

Product components

No.	Machine Name	Function	Advantage
1	Elevating	For elevating and conveying potatoes into the next washing peeling machine	1.The size can be customized 2.Conveying speed adjustable.
2	Potato Washing and Peeling Machine	Thoroughly washing and peeling the potatoes	1. Washing and peeling capacity can be customized. 2. The length of brush can be customized. 3.We use high quality brusher,even old potatoes that are hard to peel can be peeled well. 4.Spraying system to clean the potatoes. 5.Spiral design to make sure automatic discharging. 6. The discharge speed can be adjusted. 7. The whole machine is made of 304 stainless steel.
3	Picking Line	For manually disposing the uncleaned places and selecting the defective potatoes	1.Picking table size can be customized 2.Conveying speed adjustable.
4	Elevating	For moving the cleaned and peeled potatoes to the slicer	1.The size can be customized 2.Conveying speed adjustable.
5	Potato Slicing Machine	Cutting the potatoes into slices, sizes adjustable from 1-5mm	1.Potato chips thickness 1-5mm can be adjustable. 2.Cutting surface is smooth without damage.
6	Bubble Washing Machine	Through high pressure waterflow and water bubbles to impact and scrub the potato slices to wash off the starch	1.Remove the starch from the potato chips. 2.Strong water flow, bubble impact. 3.High pressure spraying system. 4.Filter system and water recycling system.
7	Blanching Machine	Through 60-95 degree hot water blanching to inhibit the activity of the enzyme and maintains the original vivid color of the potato slices	1.You can use gas, electricity or diesel as power for this machine depending on your needs. 2.It can effectively protect original vivid color of the potato strips/potato chip. 3.You can add additives during blanching process.
8	Vibration Dewatering Machine	Through vibration to remove the surface water and also to transport the potato slices uniformly to the next machine	The de-water time is adjustable.
9	Air Drying Machine	Through high pressure wind blowing for pre-cooling and removing the excess water in short time, effectively prevent the fried oil jumped phenomenon	1.The multi-layer mesh belt conveyor belt and special fan outlet completely remove the moisture on the surface of the potato slices. 2.Fan can be adjusted up and down.
10	Elevating Conveyor	For elevating and conveying the potato slices into next fryer machine	1.The size can be customized 2.Conveying speed adjustable.
11	Continuous Frying Machine	For quick frying the potato slices around few minutes in 180°oil	1.Automatic lifting system, easy to clean. 2.Double mesh belt transmission to avoid the chips floating. 3.Oil filter and recycling system to automatically and continuously filter the oil residue to extend the service life. 4.Electric or gas heating.
12	Vibration Deoiling Machine	Through high frequency vibrating to achieve deoiling purpose, and also to convey the potato slices uniformly to next machine	The de-oil time is adjustable.
13	Pre-cooling Machine	Through high pressure wind blowing for pre-cooling and deoiling the potato slices	1.The multi-layer mesh belt conveyor belt and special fan outlet completely remove the oil on the surface of the potato slices. 2.Fan can be adjusted up and down.
14	Elevating Conveyor	For moving potato chips to seasoning machine	1.The size can be customized 2.Conveying speed adjustable.
15	Seasoning Machine	Spread the seasoning evenly over each potato chip	1.With spice tank, the flow of spice adjustable. 2.You can add additives any you want even liquid such as oil, water etc. 3. Seasoning time can be controlled.
16	Automatic Weighing Packing Machine	For packing the finished potato chips	It can fill Nitrogen automatically, automatic weighing, automatic sealing and automatic packing.
