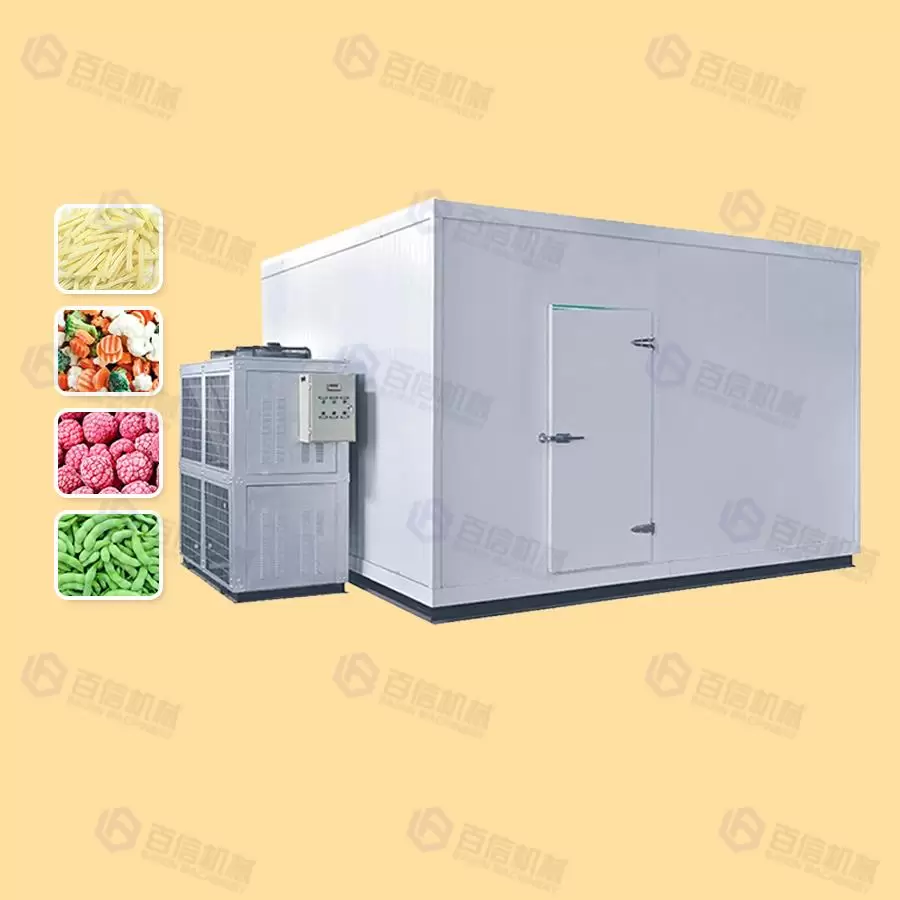

Description of freezing machine
1. large efficient surface; Small temperature difference between evaporation temperature and frozen indoor temperature.
2.Evaporating fan, ventilation device, adjustable heat wave device improve the focus and cold wind speed. It makes the foods freeze in shortest time and of unified quality.
3.The wind direction can be adjusted and control the cold wind not out. The adjustable temperature control device can control the feeding height in avoid of cold air lose.
4.150mm-thick polyurethane insulation board ; 0.8mm thick SUS304 stainless steel board; the access door is equipped with double hinge two-door into double strip which is resist to low temperature and oil.
5.All parts is SUS304 except the reducer and motor and other special parts.
6.The wide speed and temperature is stable, freezing temperature is stable and well distributed, so the materials can be freezed in short time.
7.In order to prevent cold energy loss and increase energy consumption, the stainless steel wide adjust device and keep temperature device will be equipped at the entrance and out of the instant freezer.
8.It is manufactured, designed, installed based on International standard. It is stainless steel self-extinguishing flame retardant polyurethane sandwich insulation board. The shell thickness is 0.6mm and it is SUS304 stainless steel. The inner is 150mm.

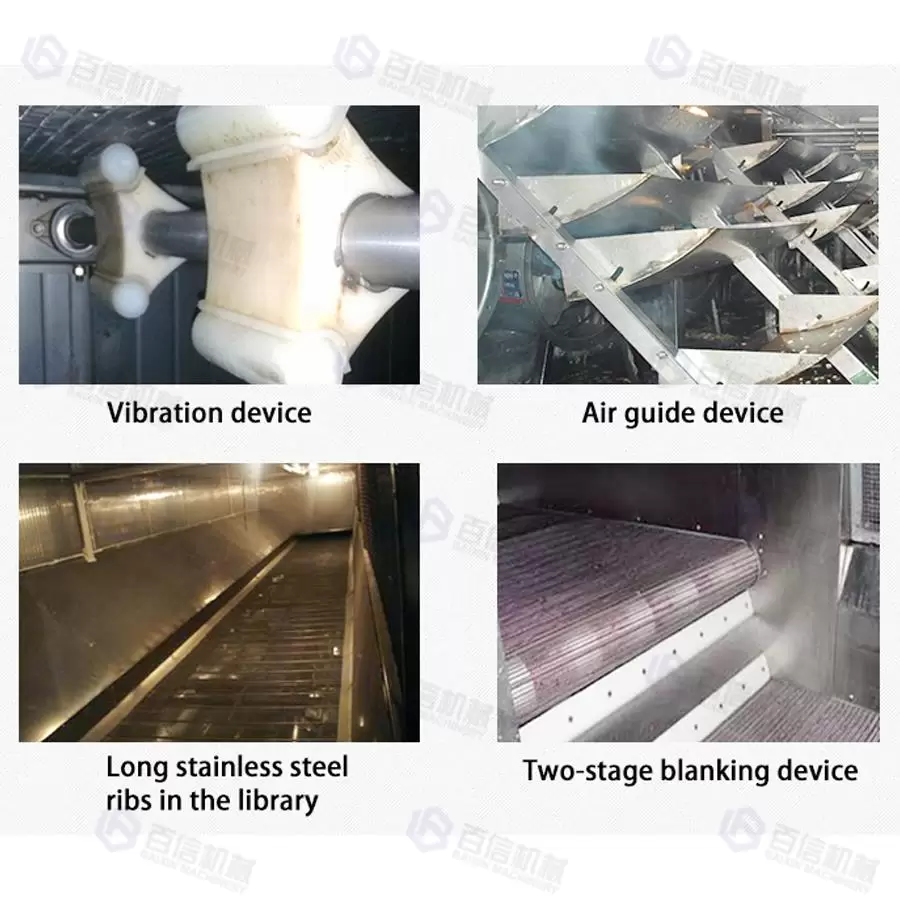

Mechanical transmission
1.Conveying mesh belt is made of SUS304 spring which is smooth, and flexible operation for wear shaft.
2.The contact area of mesh belt and guid slide friction is PVC material which is of high molecular wear-resisting.
3.Outdoor frequency conversion stepless speed transmission, manual emergency stope device, three sections of temperature display, heating and lighting library door.
Evaporator and winding
1.evaporator is aluminum finned tube which is of oxide antirust processing. It ensure uniform frost, air flow. All material is stainless steel.
2.Euipped with axial flow fan which is of high efficiency and energy saving.
3.Adopts manual defrosting. The defrosting water spraying device is set on upper of evaporator to ensure uniform defrosting, rapid.
Evaporator and defrosting
1.It is designed based -40℃ evaporating liquid;
2.It is aluminum finned tube which is oxide antirust processing. It can ensure uniform frost, air flow, bracket.
3.It is axis air fan which of low noise and works stable.
Electric control parts
All motors and electrical components is not lower than IP55 protection grade. Motor USES Y2 type waterproof.
It should be widely used in a variety of industries, such as rapid freezing of fruits, vegetables, seafood, meat, etc.
1.Customized according to customer’s frozen product characteristics adn site requirements.
2.We supply service of supplying drawing.
3.We supply overseas installation and commissioning on sale.
It should be widely used in a variety of industries, such as rapid freezing of fruits, vegetables, seafood, meat, etc.

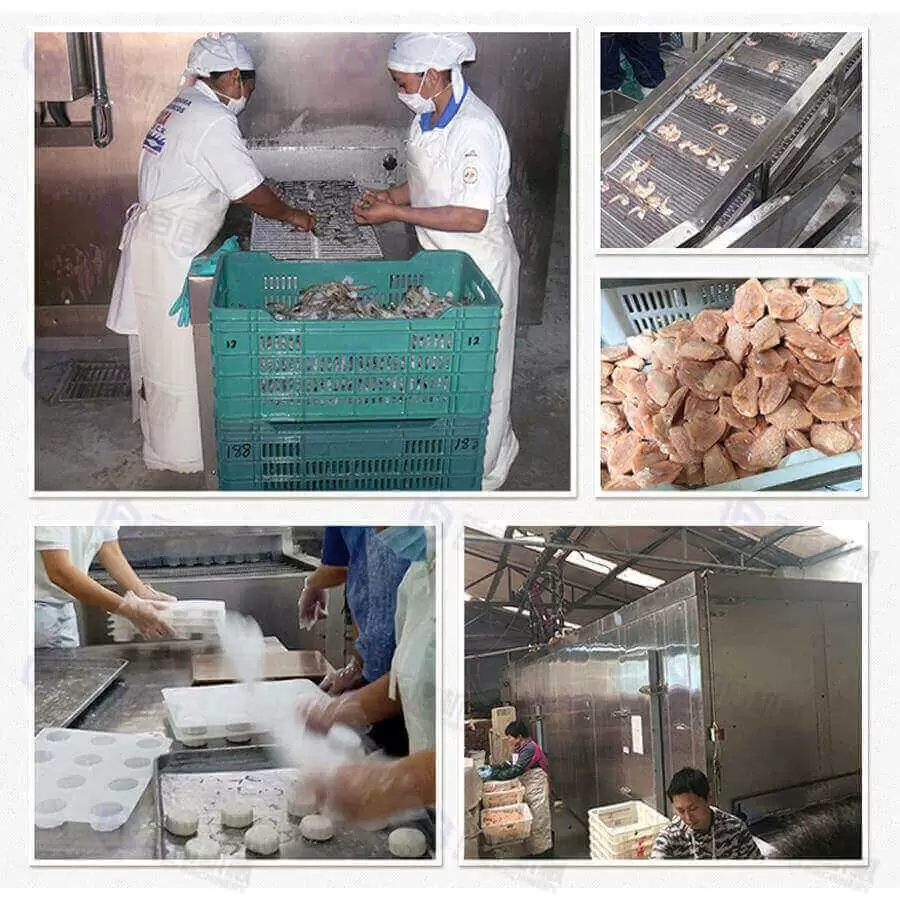

Suitable for restaurant, big factory, food processing factory, supermarket, kitchens of school etc.
| Model | Freezing capacity (kg/h) | Cold consumption
(kw) |
Installed power
(kw) |
Length(m) | Width(m) | Height(m) | Mesh belt width
(m) |
| BX-100 | 100 | 16 | 6.5 | 6.6 | 2.2 | 2.6 | 0.6 |
| BX-200 | 200 | 31 | 10.5 | 6.5 | 3.4 | 3.1 | 0.8 |
| BX-300 | 300 | 46 | 10.5 | 6.5 | 3.4 | 3.1 | 0.8 |
| BX-500 | 500 | 77 | 13.5 | 7.5 | 3.9 | 3.1 | 0.45 |
| BX-800 | 800 | 155 | 17.5 | 8.5 | 3.9 | 3.1 | 0.45 |
| BX-1000 | 1000 | 170 | 22.5 | 10.5 | 4 | 3.1 | 0.6 |
| BX-1500 | 1500 | 230 | 26 | 14.5 | 4 | 3.1 | 0.6 |
| BX-2000 | 2000 | 310 | 33 | 17 | 4.2 | 3.1 | 0.6 |
| BX-3000 | 3000 | 460 | 56.5 | 21.5 | 4.2 | 3.1 | 0.6 |
