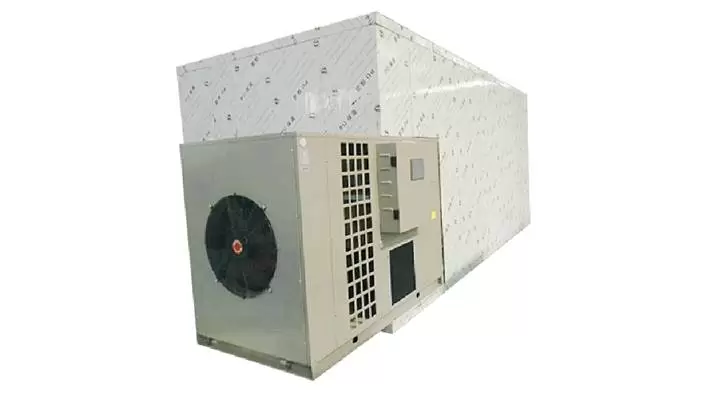

Coconut Dryer Machine

Coconut dryer machine is a kind of continuous production drying equipment, the main heating way has electric heating, steam heating, and hot air heating. Its main working principle is to spread the material evenly in the network. The material is moved in the dryer by the operation of the machine, and the hot air draws out the water vapor of the material. so as to achieve the purpose of drying.

The operation temperature is 40-120 degree centigrade. And the dry cycle is 1-5 hours.

Coconut dryer machine includes a heat source, feed conveyor, air intake system, discharge conveyor, electronic control system, and drying host.

Heat source selection of coconut dryer machine:

Advantages of the coconut dryer machine:

1. High capacity: The coconut dryer machine has continuous automatic production, fast dehydration speed, short drying time, and high output.

2. High quality: Coconut can be maintained full of shape, bright, color.

3. Clean and sanitation: The entire coconut drying process is completed in a closed box, free from external pollution.

4. Intelligent and controllable: High degree of automation equipment, simple operation. Drying area, air pressure, air flow, drying temperature, and belt running speed can be adjust.

5. Wide usage: Can be used for material from any field.

6. Flexible heat source selection: Coal,wood chips,natural gas,diesel,propane,electricity etc.

7. Flexible mobility, simple or without installation.

Application of the coconut dryer machine:

The mesh belt dryer machine is suitable for food series, vegetable series, fruit series, pharmaceutical series, agricultural and sideline products of large-scale continuous dehydration drying. It is an ideal choice for large enterprises to dry fruits, vegetables, flowers, leaves, meat, pet snacks, herbs, spices, nuts, seeds, and seafood.

1:Place the coconut on the conveyor belt of the coconut dryer machine. The coconut is spread on the feeder by the homogenizing device on the conveyor belt.The stacking thickness of coconut is 10-20CM.

2:After the coconut enters the coconut dryer machine, it runs in an "S" shape in the dryer. The transmission part of the coconut dryer machine adopts a variable-frequency speed-regulating motor, which can control the internal operation time of the drying according to the difference of the water content of the coconut.

3:The wind speed and wind pressure generated by the hot air blower make the hot air fully and evenly distributed inside the coconut dryer machine. Because the lower pressure is greater than the upper pressure, the hot air naturally moves upward, passing through each layer of the mesh belt, plus the movement and rolling of the coconut, Make the coconut fully contact with the hot air, fully heat exchange, and improve the drying efficiency. The dried coconut will drain through the last layer.
